SoftBank Robotics documentation What's new in NAOqi 2.5?

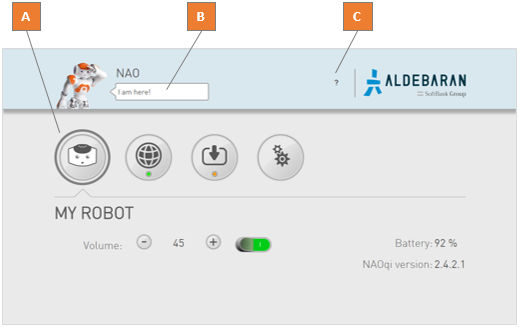

NAO Web page

../_images/myrobot_main.png
Part Name Allows you to ...
A Settings menu Remotely access to NAO‘s Settings menu.
B Speech bubble

Make your NAO say a short sentence:

  1. Click the speech bubble.
  2. Optionally, edit the text.
  3. Press Enter key.
C ? menu

Open:

Accessing the NAO Web page

Step Action
Make sure your robot is on.

Press the Chest button once.

NAO says the four numbers of its IP address: note them.

../_images/wiz_step5.png

Troubleshooting: If NAO says “I can’t connect to the network”:

  1. Check the availability of your local network,
  2. Turn OFF and ON the robot,
  3. Check the WiFi settings: Setting NAO’s WiFi connection.

Open a web browser and enter this IP address in the address bar.

../_images/wiz_step5ter.png

An authentication windows appears.

../_images/wiz_step5bis.png

Complete:

  • User name: nao

  • Password: password you have set for the robot.

    The password default value is nao.
    If you have lost your password, see: Lost your password.

Result: the NAO Web page appears.

Note

If the robot has not yet been configured, the NAO - Getting started wizard wizard appears instead: follow its steps, you will then have access to the NAO Web page.

Tips: if you have installed Choregraphe, you can also try one of the: Alternative methods to access to NAO Web page.

Alternative methods to access to NAO Web page

Accessing NAO Web page using Choregraphe

Step Action
Launch Choregraphe.

Choose Connection > Connect to or Click the connect-button Connect to button.

The Connect to panel is displayed.

Right-click the green NAO and choose View web page.

Accessing NAO Web page using NAO‘s name

Step Action
Open a web browser.

If you know NAO‘s host name:

  • Type: [naoHostName].local in the address bar.

    By default, it is: nao.local

If you don’t know NAO‘s host name:

  • Click the Bonjour bonjour icon.
  • Double-click on NAO‘s name.

Bonjour is conceived by Apple and installed by default on Mac OS X and Linux (Avahi) computers. On Windows, it is automatically installed during the Choregraphe installation process.

For all information about Bonjour, including licensing, please visit the official site: http://support.apple.com/kb/DL999

Lost your password

If you have defined then lost the password for the web interface:
