Hello Guide

NAO comes in a box with a graphical Hello Guide inside.

Here is a more detailed step by step:

Step Action
one

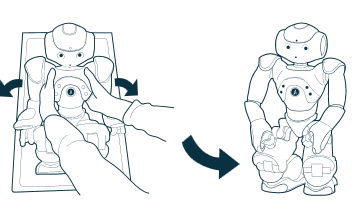

Get NAO out of its box, and gently set NAO in a crouching position.

../_images/wiz_step1.png
two

Plug the charger to the mains, and plug the charger cable into NAO‘s back.

../_images/wiz_step2.png
tre

Remove the hatch behind the head of the robot to access to the Ethernet socket and plug an Ethernet cable.

../_images/wiz_step3.png

Then connect the Ethernet cable to your Internet box.

For further details, see: Plugging my robot to Ethernet.

fou

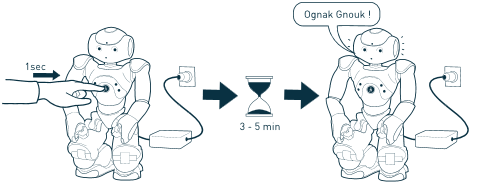

Press the Chest button once, and wait for the completion of the boot process until the robot says “OGNAK GNOUK”.

../_images/wiz_step4.png
fiv

Press the Chest button once.

../_images/wiz_step5.png

NAO says the four numbers of its IP address: note them.

Open a web browser and enter this IP address in the address bar.

../_images/wiz_step5ter.png

Tips: make sure you add dots between the numbers.

An authentication windows appears.

../_images/wiz_step5bis.png
six

Complete both User name and Password with the default value: nao.

../_images/wiz_step6.png

Tips: make sure you type ‘nao’ in lower-case.

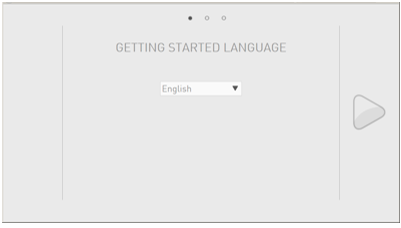

A Getting started wizard appears.

../_images/conf_step1.png

Follow its steps to configure your robot.

For further details, see: Configuring NAO for the first time.
