Setting Pepper‘s WiFi connection

Network settings

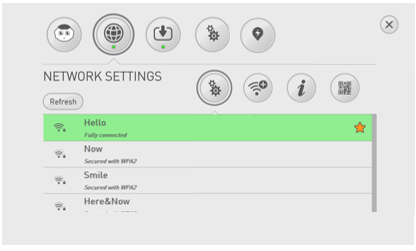

Network settings section allows you to set the connection to the network.

../../_images/pep_setting_network.png

Setting WiFi connection

To choose and configure one of the displayed WiFi networks, see: Standard WiFi connection.

Specific cases

If you ... See ...
have been provided with a QR Code WiFi connection using a QR Code
must use a hidden network WiFi connection to a hidden network
need to configure the MAC address filtering of your WiFi accesss point MAC Addresses

Standard WiFi connection

Step Action

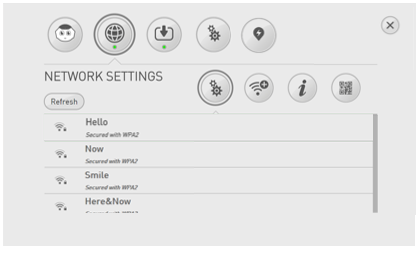

Select one of the available WiFi networks.

../../_images/setting_network_01.png

Note: Choose a Wifi network having one of the Supported personal securities.

Complete the required parameters.

../../_images/wiz_pep_3of3wifi2.png

Click the Connect button.

../../_images/wiz_pep_3of3wifi3.png ../../_images/pep_setting_network.png

Supported personal securities

Pepper supports WEP, WPA & WPA 2 personal securities.

Note

For WEP only the passphrase of 5 characters for WEP40 and 12 characters for WEP104 are supported, always prefer the hexadecimal representation which is the only standard.

WiFi connection using a QR Code

If you have been provided with a QR Code:

Step Action

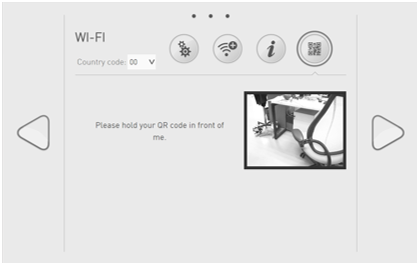

Click the qrcode QR code button and follow on-screen instructions.

../../_images/wiz_pep_qrcode.png

WiFi connection to a hidden network

To connect Pepper to a hidden network:

Step Action

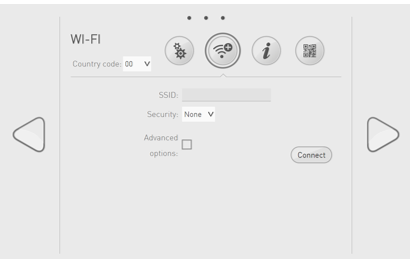

Click the add_wifi_button Add WiFi button.

../../_images/wiz_pep_hidden.png

Note: choose a WiFi network having one of the Supported personal securities.

Complete the required parameters, and click the Connect button.

MAC Addresses

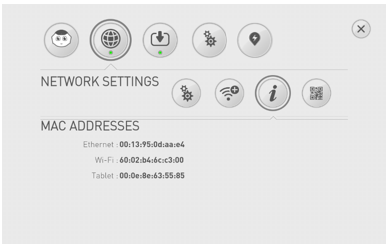

MAC Addresses section displays the MAC Addresses you could need if your WiFi access point requires to set the MAC Address filtering.

../../_images/setting_mac_address_pep.png
